Screeners by McLanahan McLanahan MD Screener

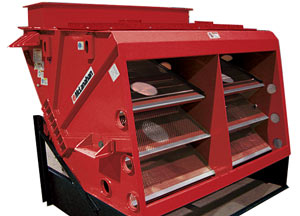

The McLanahan MD Vibratory Screen is a compact, high capacity dry screening unit used in a variety of industries. Animal feed (pellets and crumbles), dried sand, fertilizer, iron ore, wood pellets, quick and burnt lime, limestone, grain, gypsum, salt, and sugar are just a few of the materials and applications in which the MD Vibratory Screen is capable of screening efficiently and effectively.

the MD model can screen more tons per hour per square feet of screen surface area and hande larger capacities than conventional screens while occupying the same – or less – floor space. Additionally, the MD Vibratory Screen is capable of making multiple product sizes simultaneously as progressively smaller material sizes are separated from deck to deck.

Screen meshes of progressively smaller apertures are mounted in the compact vibrating frame at increasingly steeper angles. The apparent opening through which particles fall vertically is smaller than the actual aperture because of the angle of the screen deck. So the McLanahan MD Vibratory Screen makes a separation at a given size using a mesh aperture of greater size, reducing the risk of pegging and blinding, while achieving high capacities.
